ASP 7011

ASP 7011 in Surat, Gujarat
Concrete Output Max of ASP 7011 – 70 cu m/hr Engine of ASP 7011 – 100 hp

Call us directly on +91 98251 12728 or get in touch with for AJAX brand various Concrete Equipment like Concrete Batching Plants, Self Loading Concrete Mixer, Concrete Pumps and Construction Equipment of CASE like Graders, Hydraulic Excavator, Loader Backhoes, Vibratory Soil Compactor in

Surat

,

Gujarat

.
Wear Plate & Wear Ring
A TUNGSTEN CARBIDE wear plate and wear ring Providing a longer life span (upto 300% longer than non-carbide wear parts) which keeps maintenance costs down.
Hopper
Triangular paddles in the hopper ensure concrete flow within the pump is smooth and unhindered.
Hydraulic Sensing Valve
This is the major valve for Hydraulic Changing System. Hydraulic Sensing valve guarantees good durability, long life and free form electrical problem.
Remote Control
The Concrete Pump comes complete with a 10 meter cable remote control as an optional feature.
Greasing System
To reduce maintenance, the pumping units are equipped with an automatic greasing system including electric pump with grease tank. Automatic greasing system comes as an optional feature.
Split Ram
The replicable seal kit are easily changed by quick detachable connections. The seal kit are especially suitable for high pressure and abrasive concrete. More economical for all operational conditions. Service life that is upto 3 times longer than solid ram.
Concrete Cylinder
The hard chrome plated concrete cylinders offer less frictional resistance for ram movement. Which also ensures extended service life due to high resistance to wear and corrosion
S-Valve
S-Valve is suitable to the harsh concrete because it has a big inner diameter with a robust " S " valve design, with less reduction in concrete pressure. ASP 7011 pump ensures longer life with very low wear.
ASP 7011 in Surat, Gujarat
Engine
100 hp
ASP 7011 in Surat, Gujarat
Concrete Output
Rod Side: 70 cu m/hr
ASP 7011 in Surat, Gujarat
Concrete Pressure
Piston Side: 106 bar
ASP 7011 in Surat, Gujarat
Machine Weight
Gross Weight 5000 kg
ASP 7011 in Surat, Gujarat
Concrete Output
Piston Side: 48 cu m/hr
ASP 7011 in Surat, Gujarat
Distribution Valve
S2018
ASP 7011 in Surat, Gujarat
Hopper Capacity
600 ltr
ASP 7011 in Surat, Gujarat
Concrete Pressure
Rod Side: 71 bar

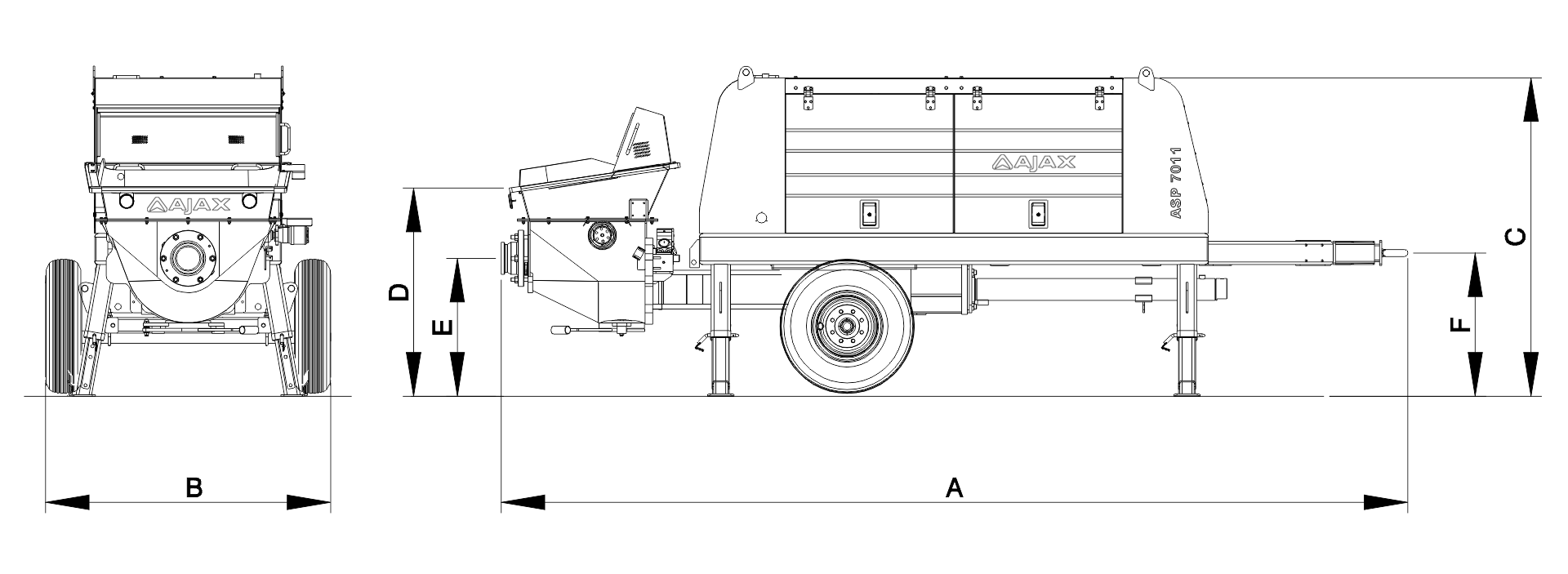

DIMENSIONAL CODEDIMENSIONS IN MM
A5960
B1850
C2200
D1350
E925
F900

0
