.Concrete Batch Controller
Accurately measures all the ingredients to produce high quality concrete.High Gradeability
Highly efficient in steep inclined terrains Advance technology for delivering concrete even at inclined position.Self Loading Arm with Hatch Bucket
The Loading arm with tilting hatch bucket ensures smooth flow of material into the drum, thus minimizing spillage.Ease of Operation
Single joystick for loading operation, Hydraulically operated levers for easy handling of operationsTight Turning Radius
4 Wheel steering system allows maneuverability in narrow space and allows for tight turning radius. Crab steering enables side maneuverability.Reversible Operator Post
Provides complete visibility to the operator when the ARGO is in motion or during loading/unloading operation.Ease of Maintenance
Excellent design permits ease of accessibility and maintenance.Ergonomic Design
The cabin is designed to enhance the efficiency of the operator and allowing him to work for longer hours.Drum Swivel Variant
Now get an extra edge by giving a swivel feature to your drum for unloading operationsHigh pressure cleaning
On board water tank coupled with a high pressure jet system will allow you to keep your machine clean at the end of the day.Add-ons to tailor fit your project
Rear view Camera. Load cell based Weighing system. Admixture dosing unit.
Engine
Escorts 4 cylinder turbocharged 49.5 hp @ 1850 rpm
Machine Weight
Unladen Weight 6160 kg
Bucket Capacity
400 ltr
Heavy Duty Tyre
12.5/80-18-14 PR
Water Tank Capacity
600 ltr
Vehicle Speed
0-22 kmph
Drum Output
2.3 cu m/batch* *Subject to conditions
Fuel Tank Capacity
65 ltr

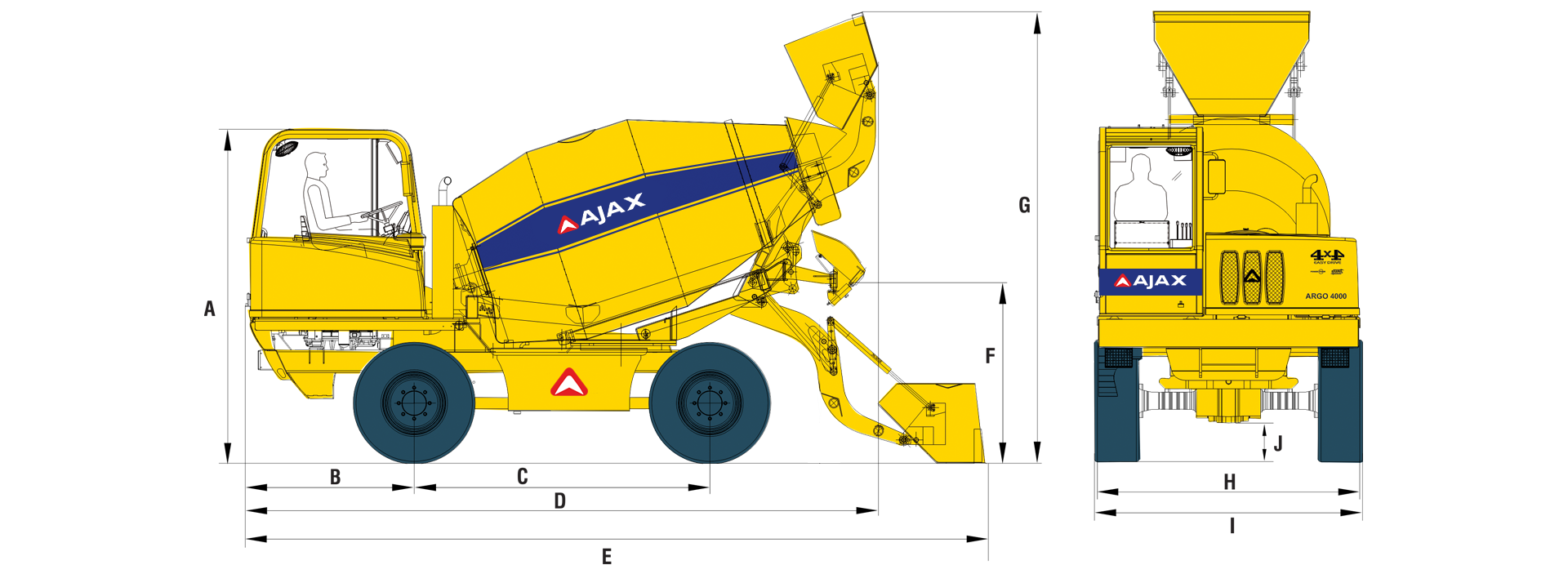

| DIMENSIONAL CODE | DIMENSIONS IN MM |
|---|---|
| A | 2857 |
| B | 5830 |
| C | 3690 |
| D | 307 |
| E | 2214 |
